X0505-176/230/58
| Art.-Nr. |  |
 |
 |
 |
 |
Tyre tread | Fastener |  |
Ball bearing |

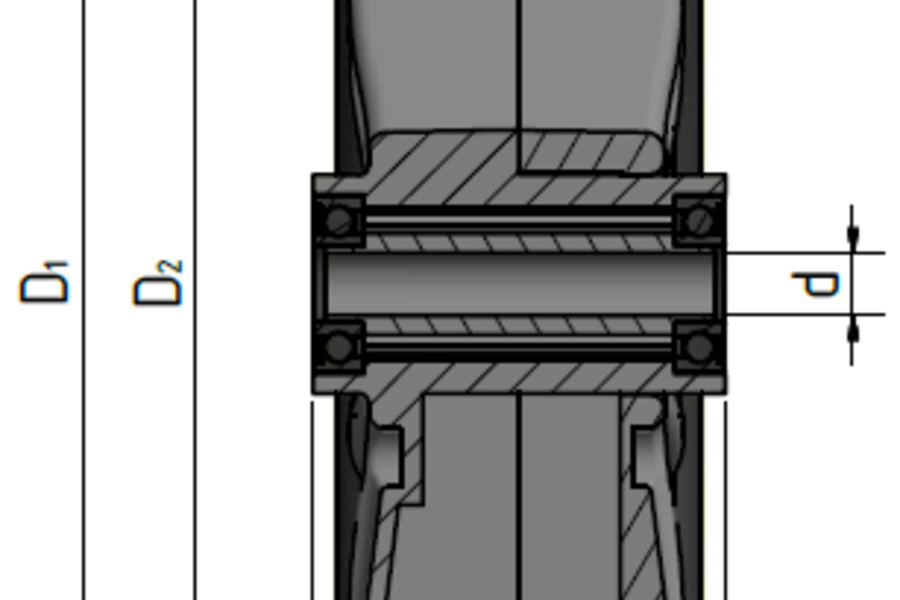

| Diameter D1 | Diameter D2 | Tyre width B | Hub length L | Axial dimension d | Load capacity | ||||
| X0505-176/230/58 | 230 mm | 176 mm | 58 mm | 64 mm | 8 mm | blade profile | bush(fork wheel) | 40 kg | X |
| X0505-176/230/58 | 230 mm | 176 mm | 58 mm | 64 mm | 10 mm | blade profile | bush(fork wheel) | 40 kg | X |
| X0505-176/230/58 | 230 mm | 176 mm | 58 mm | 64 mm | 12 mm | blade profile | bush(fork wheel) | 40 kg | X |
| X0505-240/300/58 | 300 mm | 240 mm | 58 mm | 56 mm | 10 mm | blade profile | push button | 40 kg | --- |
Colour - rim: white or silver, special colours on request.
Colour - tyre: black (standard), special colours on request.
Colour - fastener: black (standard), special colours on request.
Material - rim: PP
Material - tyre: EVA
Material - fastener: PA 6.6
