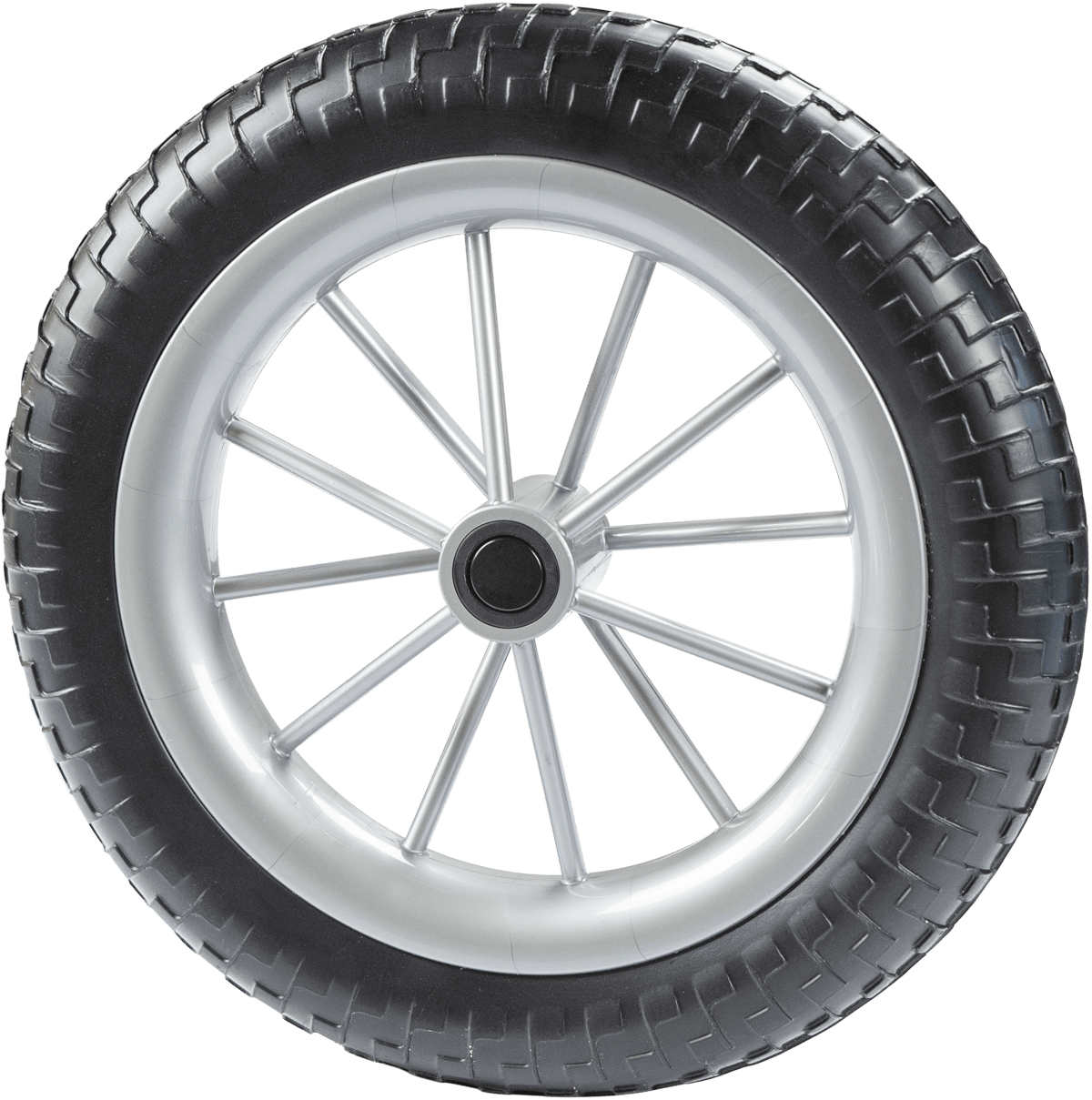

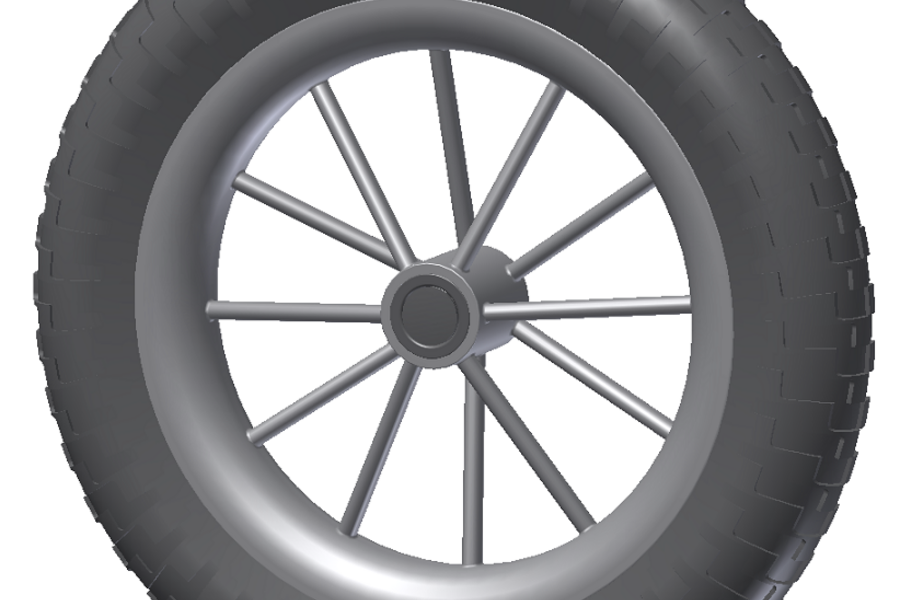

X1203-220/300/50

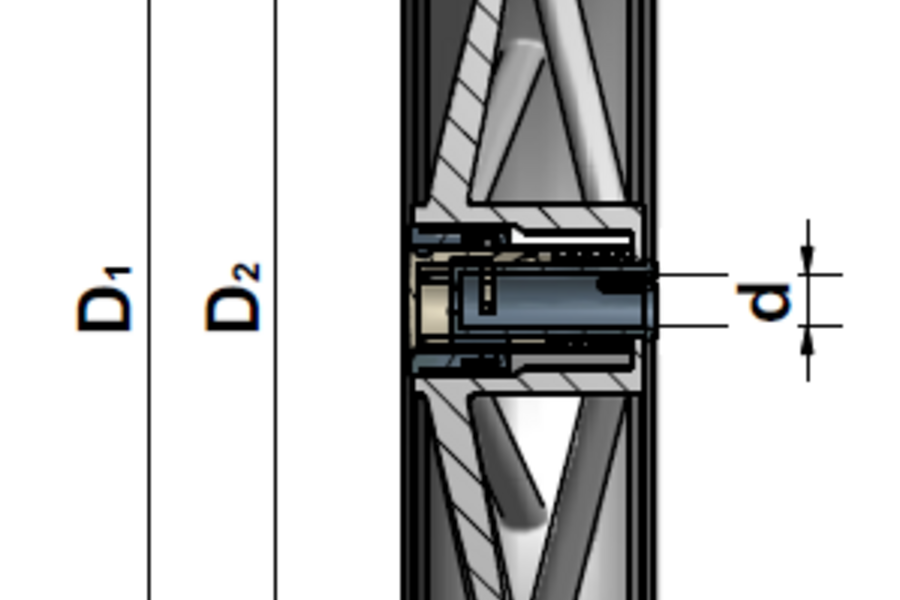

Art. No. Diameter Diameter Tyre width Hub length Axial dimension Tyre tread Fastener Load capacity
Diameter D1 Diameter D2 Tyre width B Hub length L Axial dimension d     Load capacity
X1203-220/305/48 305 mm 220 mm 48 mm 45 mm 10 mm motorbike-design push button 35 kg
X1203-220/305/48 305 mm 220 mm 48 mm 45 mm 10 mm motorbike-design spring cap 35 kg
X1203-220/305/48 305 mm 220 mm 48 mm 45 mm 10 mm motorbike-design bush 35 kg
X1203-220/303/52 303 mm 220 mm 52 mm 45 mm 10 mm cross-tyre push button 35 kg
X1203-220/303/52 303 mm 220 mm 52 mm 45 mm 10 mm cross-tyre spring cap 35 kg
X1203-220/303/52 303 mm 220 mm 52 mm 45 mm 10 mm cross-tyre bush 35 kg
X1203-220/300/50 300 mm 220 mm 50 mm 45 mm 10 mm Stollenreifen push button 35 kg
X1203-220/300/50 300 mm 220 mm 50 mm 45 mm 10 mm Stollenreifen spring cap 35 kg
X1203-220/300/50 300 mm 220 mm 50 mm 45 mm 10 mm Stollenreifen bush 35 kg

Colour - rim: silver (standard), special colours on request.

Colour - tyre: black (standard), special colours on request.

Colour - fastener: black (standard), special colours on request.

Material - rim: PP

Material - tyre: EVA

Material - fastener: PA 6.6

X1203-220/300/50

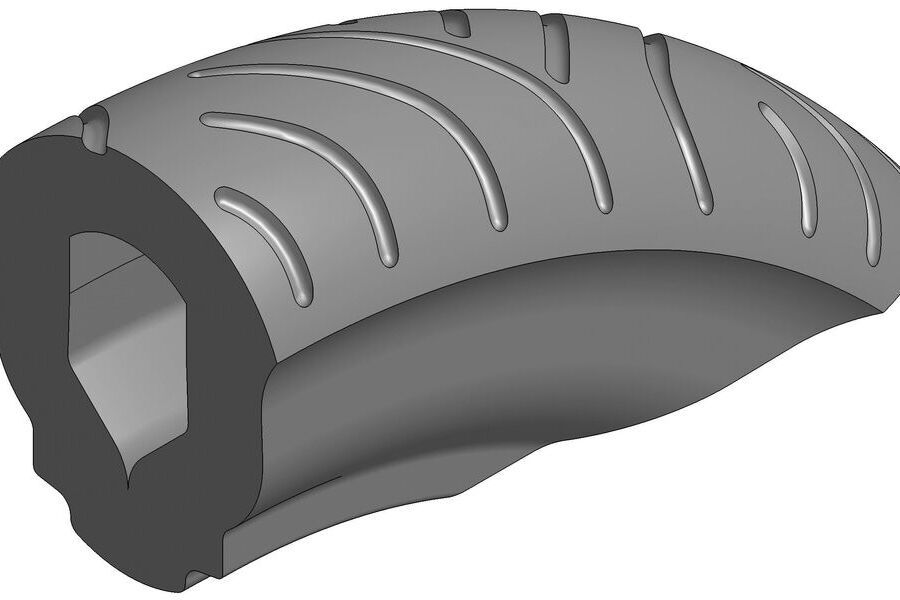

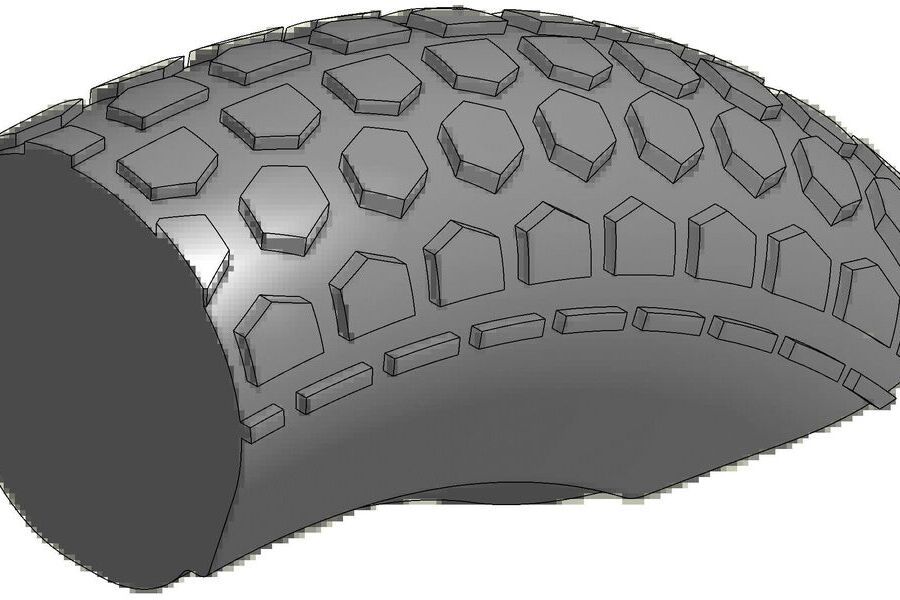

Alternative tyre treads

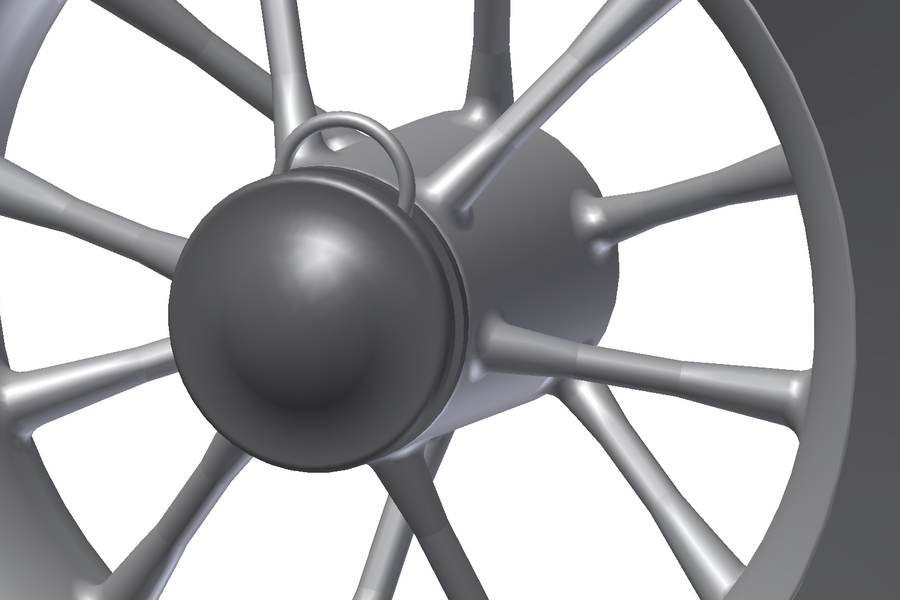

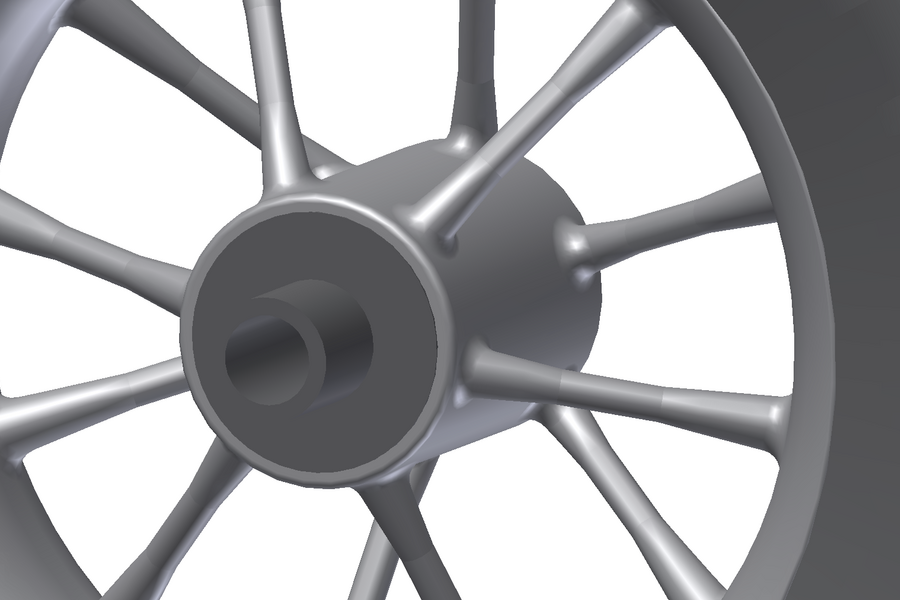

Fasteners
