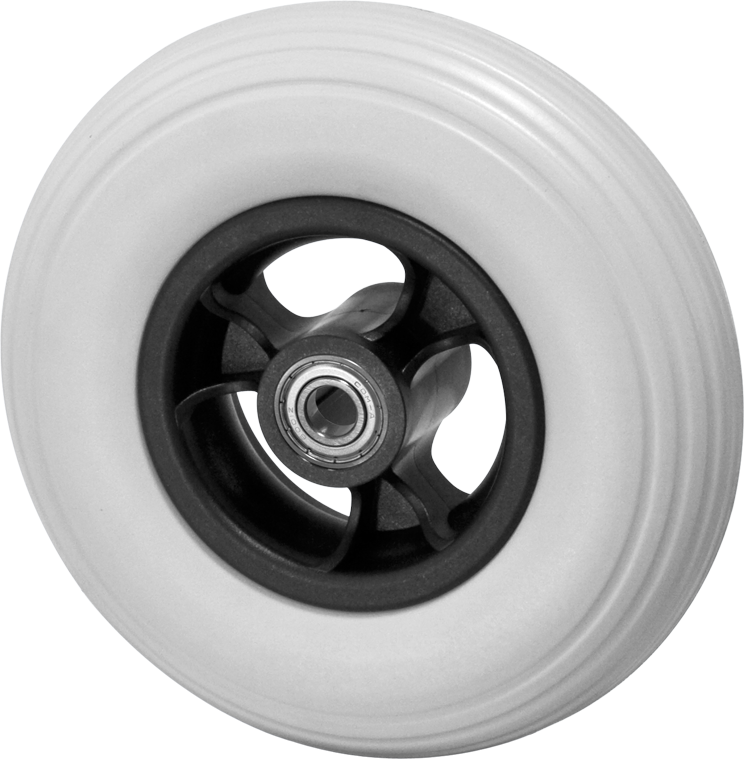

X0308-104/193/49

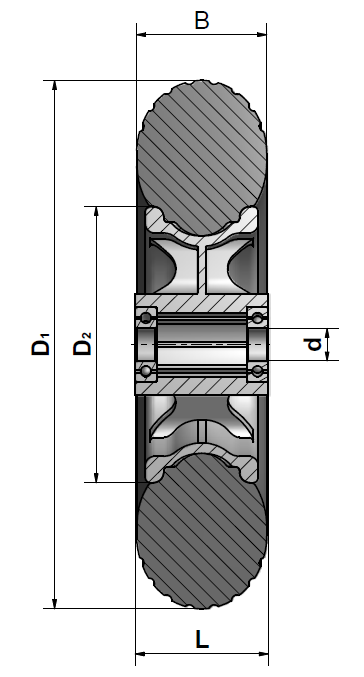

Art. No. Diameter Diameter Tyre width Hub length Axial dimension Tyre tread Fastener Load capacity Ball bearing
Diameter D1 Diameter D2 Tyre width B Hub length L Axial dimension d     Load capacity
X0308-104/193/49 193 mm 104 mm 49 mm 50 mm 12 mm lengthwise grooved,round --- 50 kg X
X0308-104/180/45 180 mm 104 mm 45 mm 50 mm 12 mm lengthwise grooved, angled --- 50 kg X
X0308-104/193/50 193 mm 104 mm 50 mm 50 mm 12 mm Stollenreifen --- 50 kg X

Colour - rim: black (standard), special colours on request.

Colour - tyre: grey (standard), special colours on request.

Material - rim: PA

Material - tyre: EVA

X0308-104/193/49

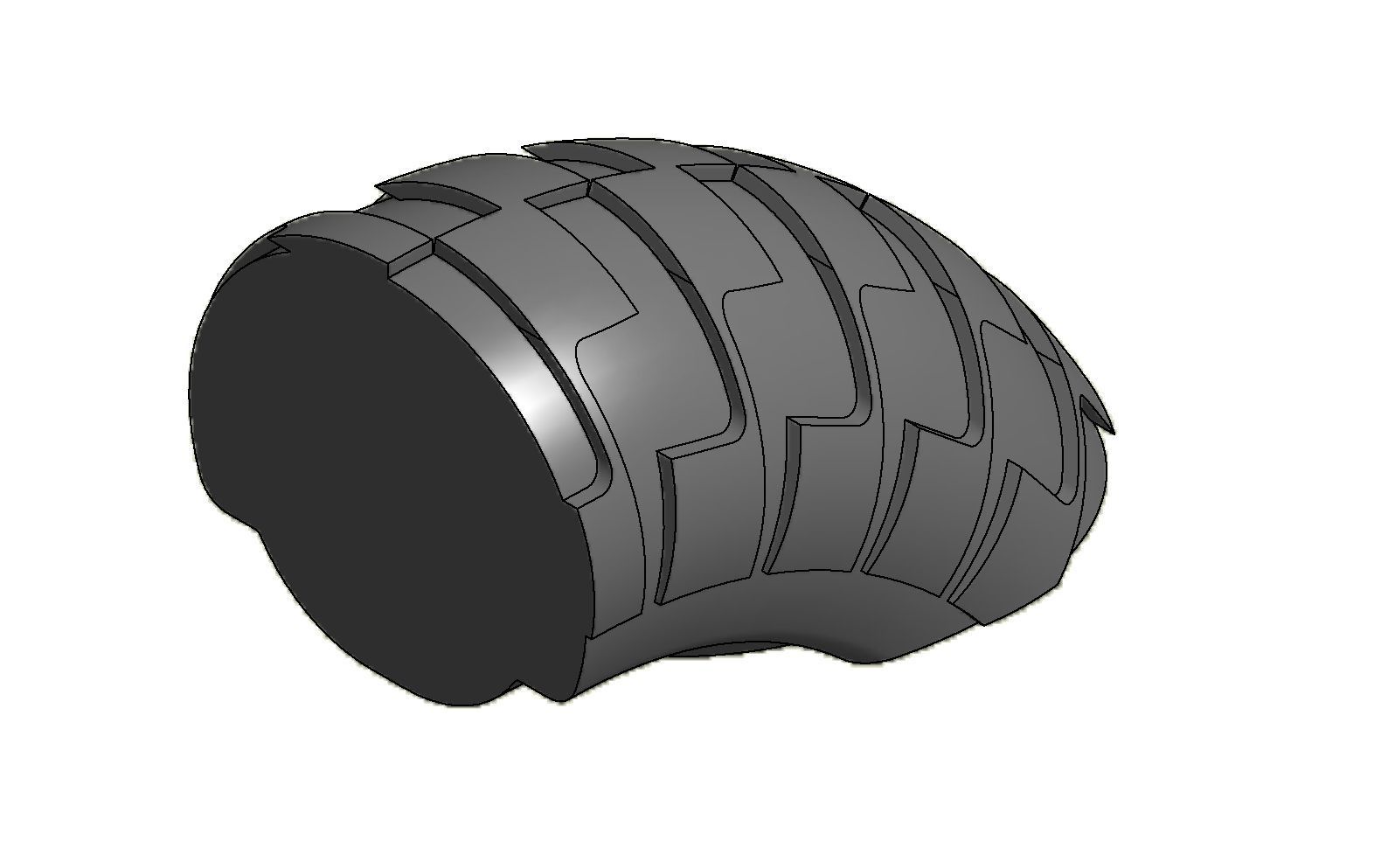

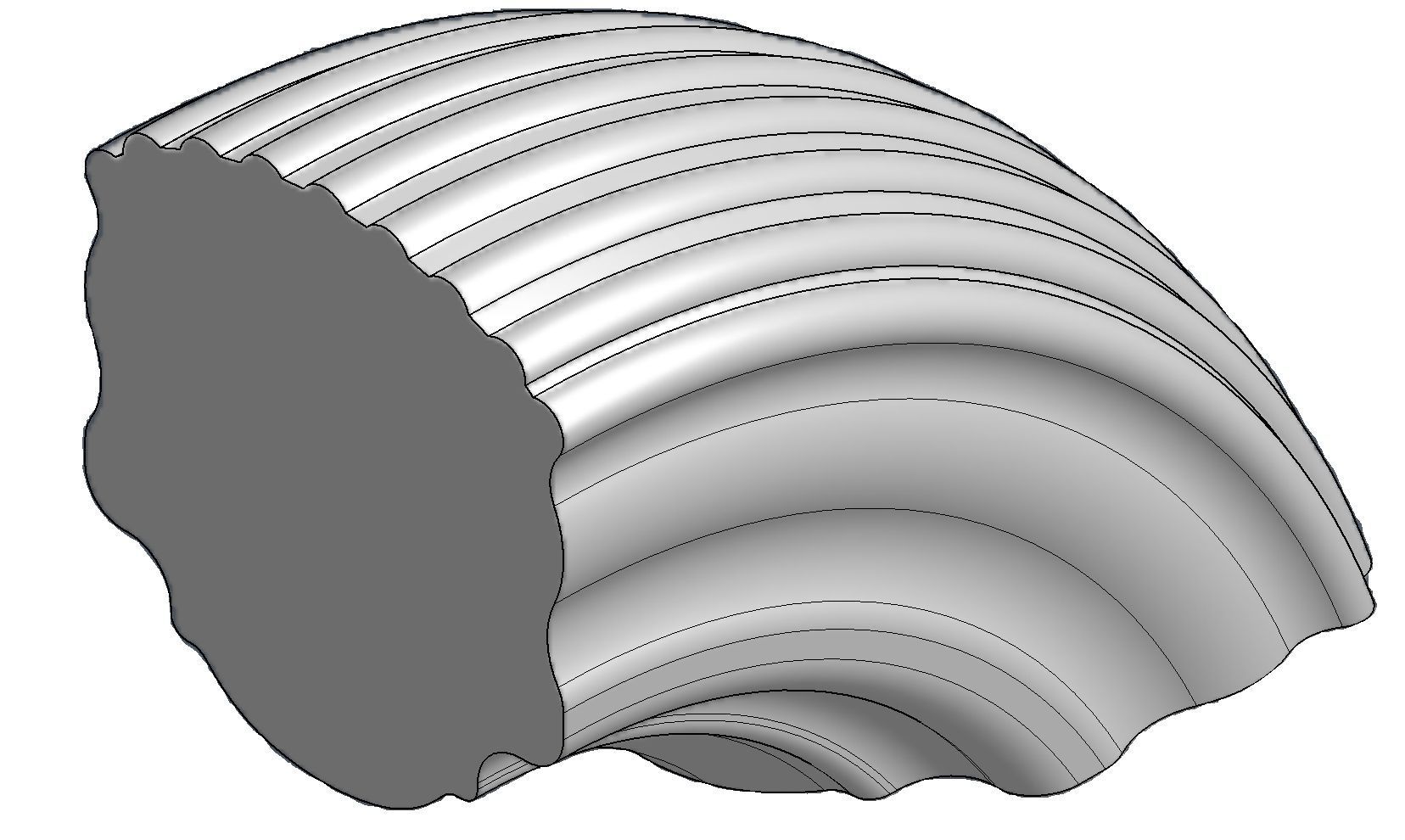

Alternative tyre treads
