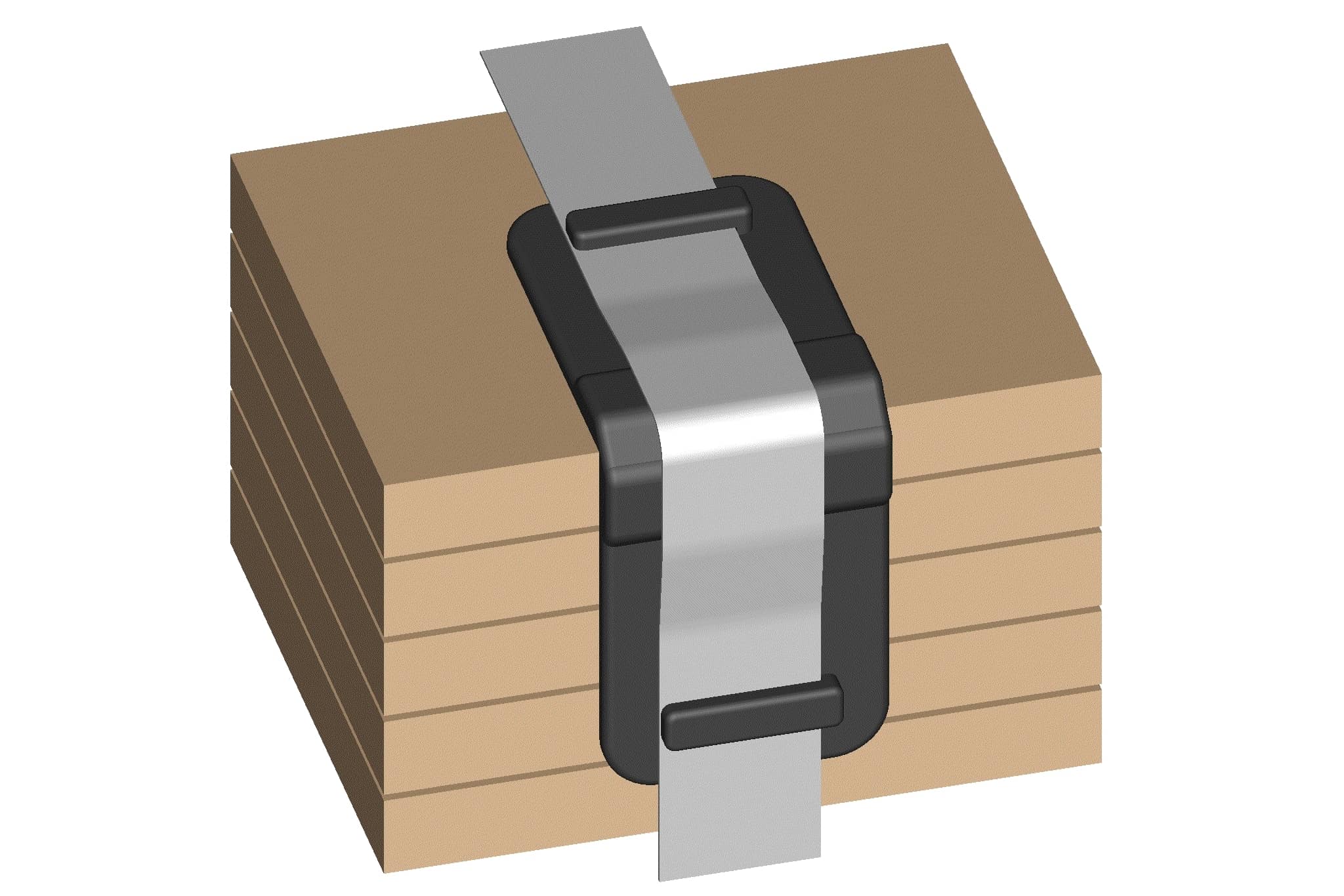

V003-Scharnierschutzecke | Plastic hinge corner protector mounted on edge

V003-Scharnierschutzecke

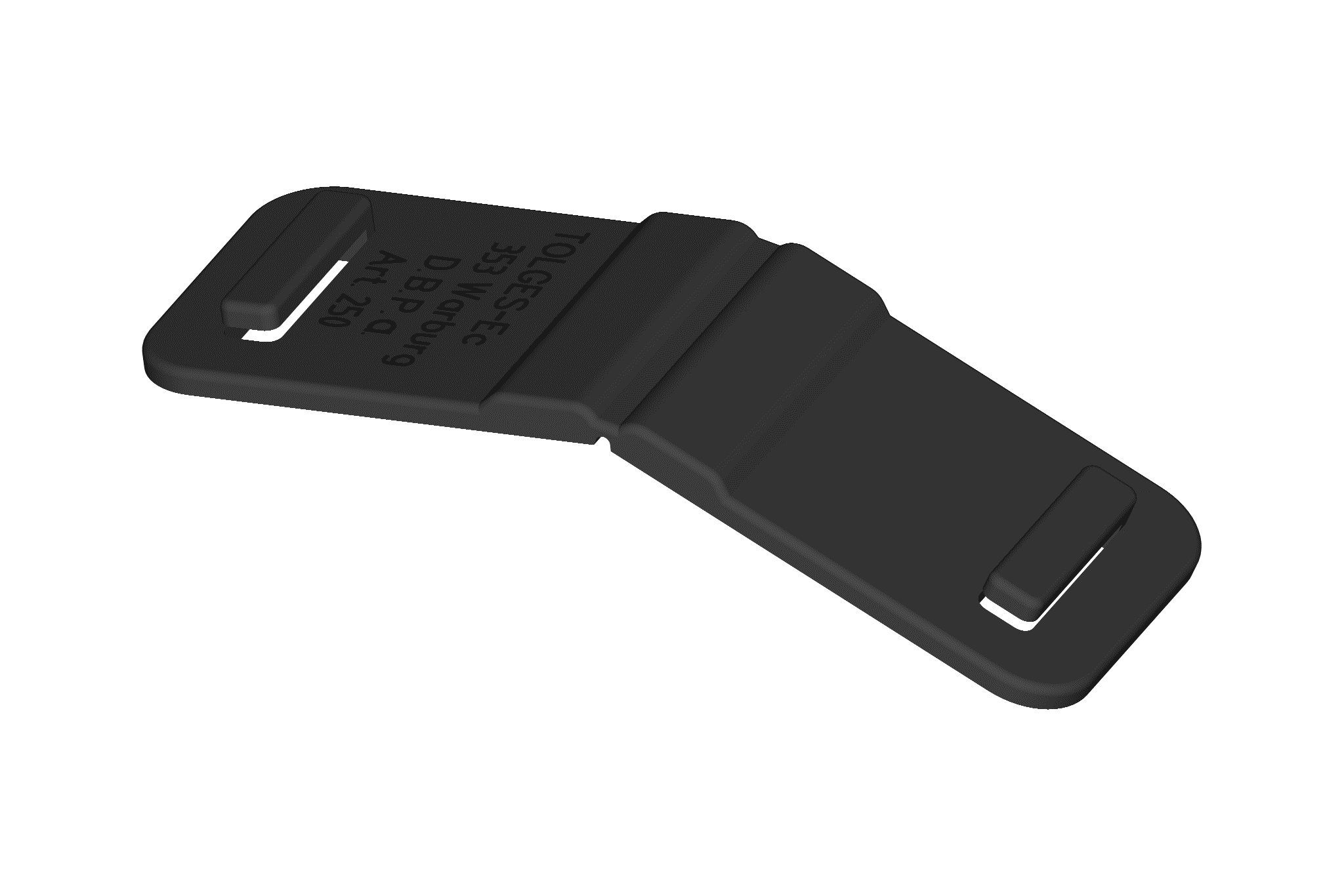

V003-Scharnierschutzecke | Plastic hinge corner protector
V003-Scharnierschutzecke | Blueprint
Art. No. Colour Max. strap width b Side length S Total width B Total height H Material Packing unit Weight/ packing unit
V003-11/50-S black 11 mm 50 mm 20 mm 6 mm PVC 3,000 pcs 19.7 kg
V003-11/50-N natural 11 mm 50 mm 20 mm 6 mm PVC 3,000 pcs 19.7 kg
V003-13/55-S black 13 mm 55 mm 30 mm 7.5 mm PVC 1,500 pcs 20.0 kg
V003-13/55-N natural 13 mm 55 mm 30 mm 7.5 mm PVC 1,500 pcs 20.0 kg
V003-19/60-S black 19 mm 60 mm 40 mm 8 mm PVC 1,200 pcs 24.4 kg
V003-19/60-N natural 19 mm 60 mm 40 mm 8 mm PVC 1,200 pcs 24.4 kg
V003-22/55-S black 22 mm 55 mm 40 mm 7 mm PVC 1,200 pcs 18.6 kg
V003-22/55-N natural 22 mm 55 mm 40 mm 7 mm PVC 1,200 pcs 18.6 kg
V003-26/65-S black 26 mm 65 mm 50 mm 7.5 mm PVC 800 pcs 23.2 kg
V003-26/65-N natural 26 mm 65 mm 50 mm 7.5 mm PVC 800 pcs 23.2 kg
V003-62/80-S black 62 mm 80 mm 80 mm 9 mm PVC 250 pcs 19.2 kg
V003-62/80-N natural 62 mm 80 mm 80 mm 9 mm PVC 250 pcs 19.2 kg
Scharnierschutzecke V003

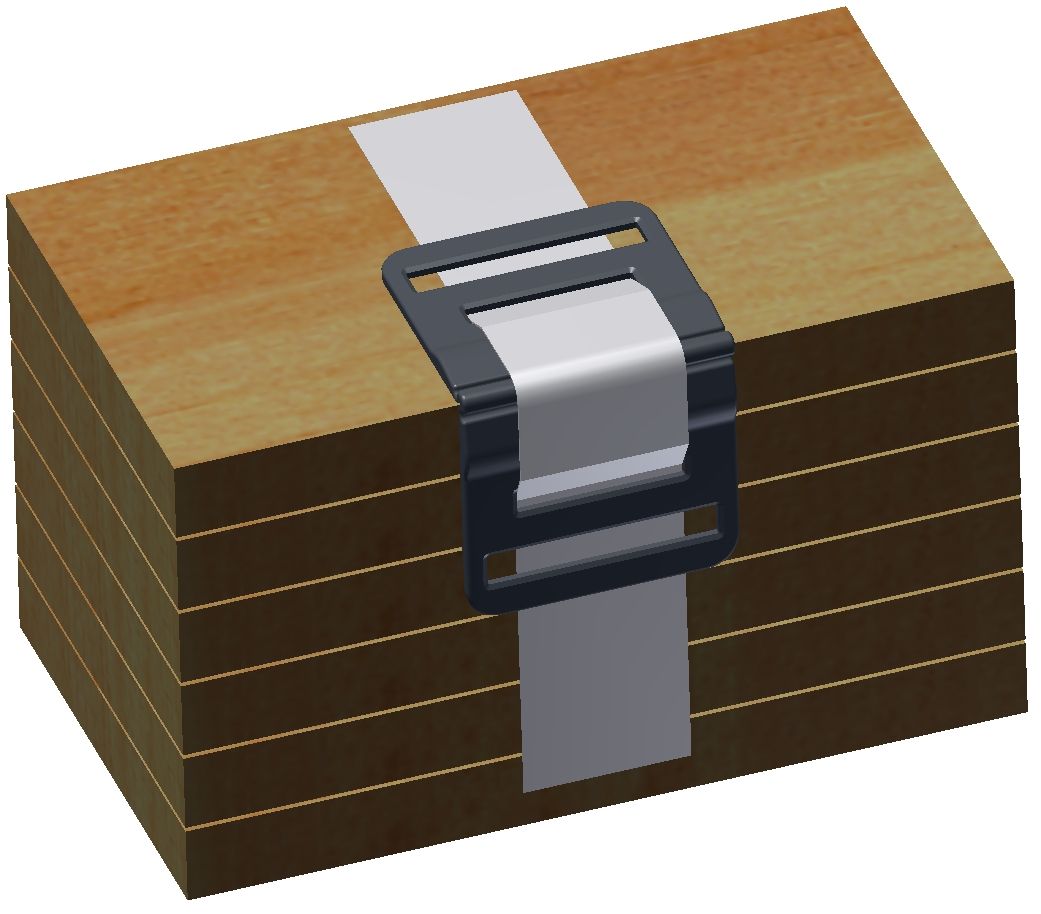

V003-Scharnierschutzecke | Plastic hinge corner protector mounted on edge

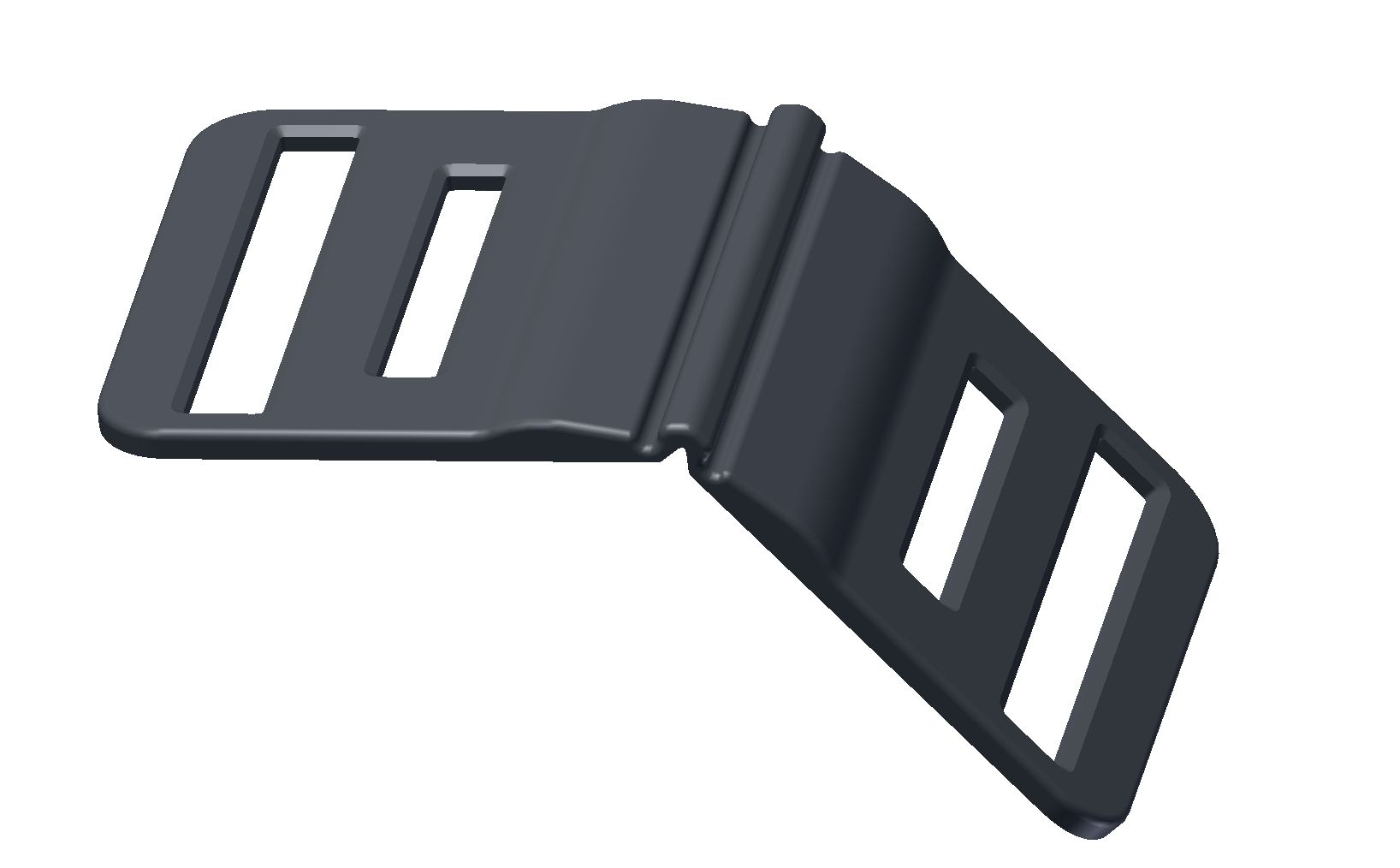

V003-Scharnierschutzecke | Plastic hinge corner protector

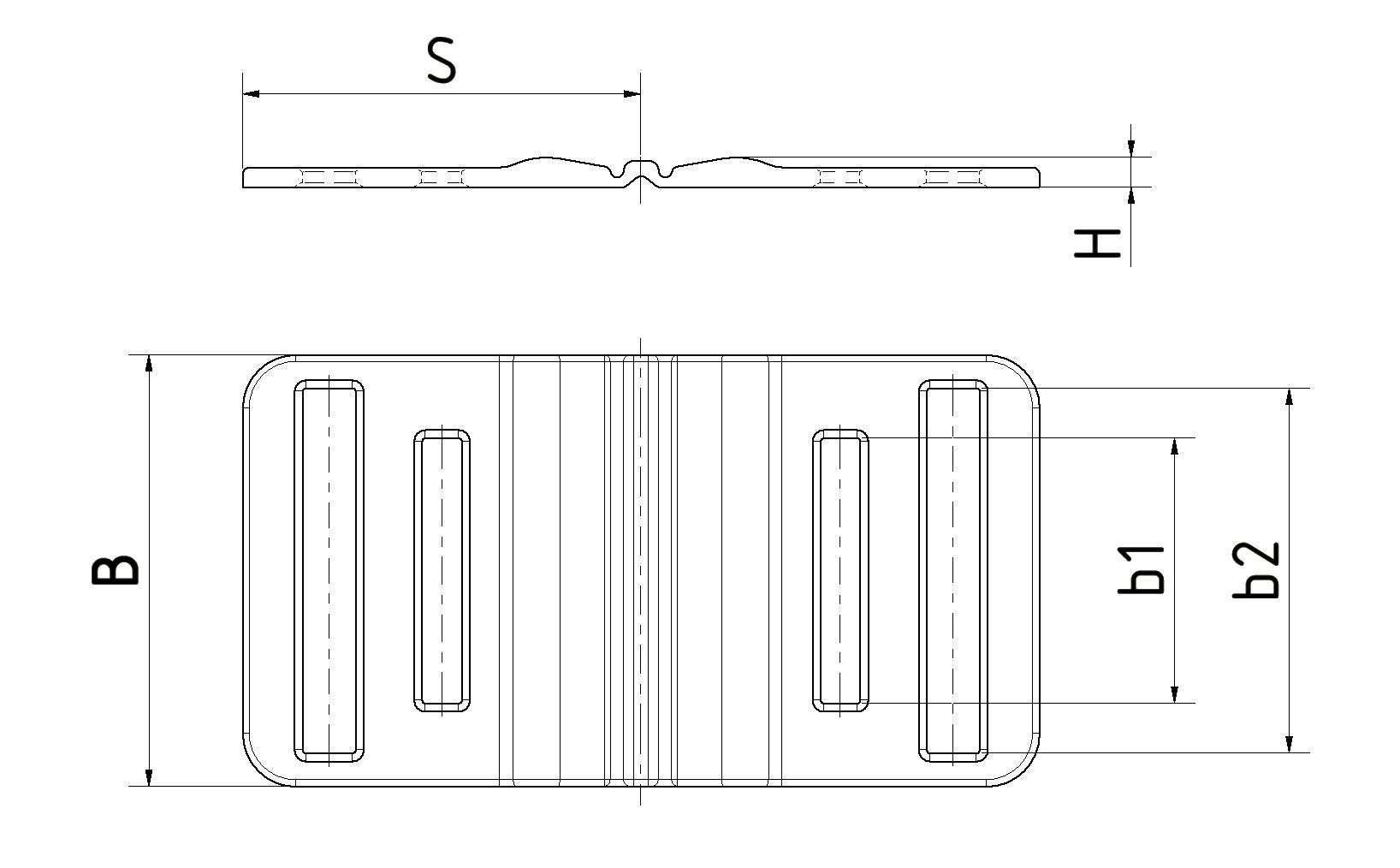

V003-Scharnierschutzecke | Blueprint
Art. No. Colour Strap width b1 / b2 Side length S Total width B Total height H Material Packing unit Weight/ packing unit
V003-40/55/60-S black 40/55 mm 60 mm 65 mm 4.5 mm PE 1,000 pcs 12.0 kg
V003-40/55/60-N natural 40/55 mm 60 mm 65 mm 4.5 mm PE 1,000 pcs 12.0 kg
Scharnierschutzecke V003
